API “The BOX” Operator’s Manual

2.2 Filter, Routing, and Meter

Input channels provide a 50Hz high-pass filter, an 8-segment LED full-scale meter,

and several routing possibilities.

Routing possibilities include:

• Compressor assignment to input channels

• Compressor placement in signal flow

• Insert

• Direct output routing

• Program bus assignment

• Meter routing

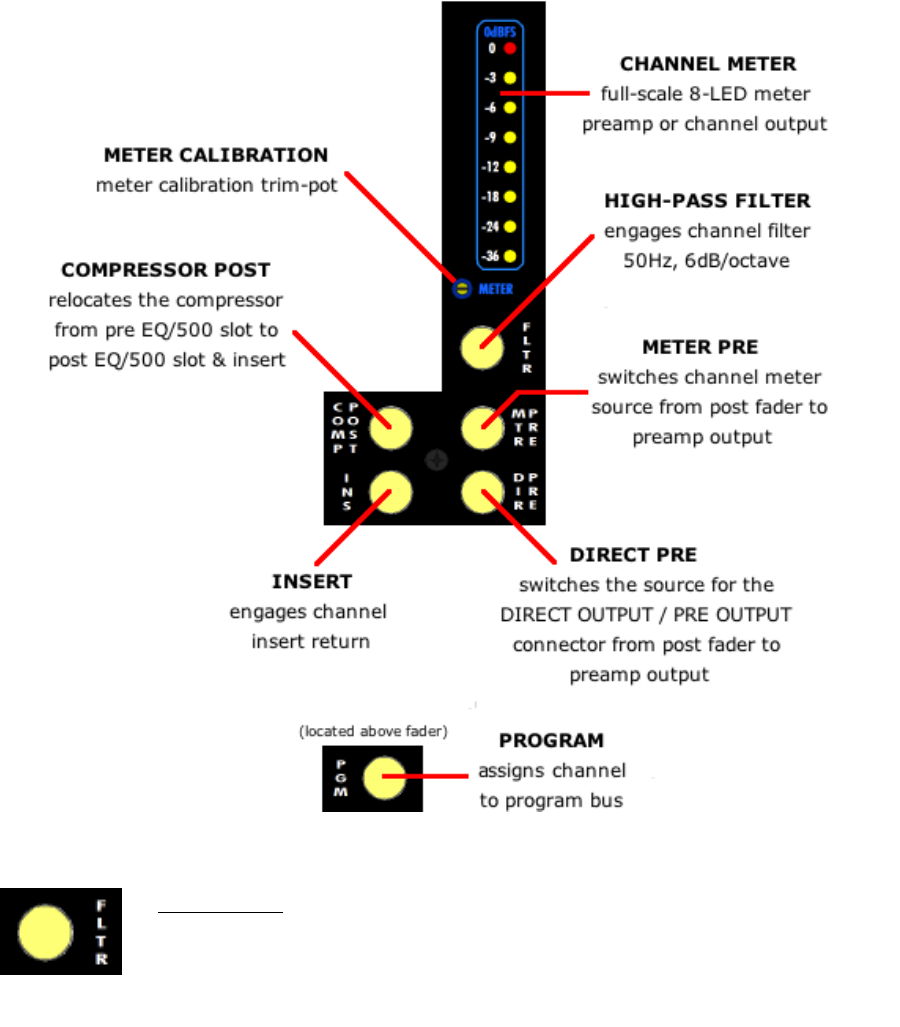

Filter, Routing, and Meter Controls:

2.2.1 High-Pass Filter

FLTR (Filter): Engages high-pass filter

• -3 dB at 50Hz

• -6dB/octave slope

• Located post-fader

• Illuminates when engaged
