API “The BOX” Operator’s Manual

The rear panel provides a comprehensive and flexible set of summing input

connections. Connections include:

• Line inputs

• Insert sends and returns

Summing Input Line Input Connections

The line inputs for the sixteen summing inputs are distributed on two DB-25

connectors.

Summing Input Insert Connections

All insert sends and returns are balanced, low-impedance, line-level signals routed via

¼” tip-ring-sleeve jacks on the rear panel.

The insert send is fed immediately after the input on summing inputs 1-16.

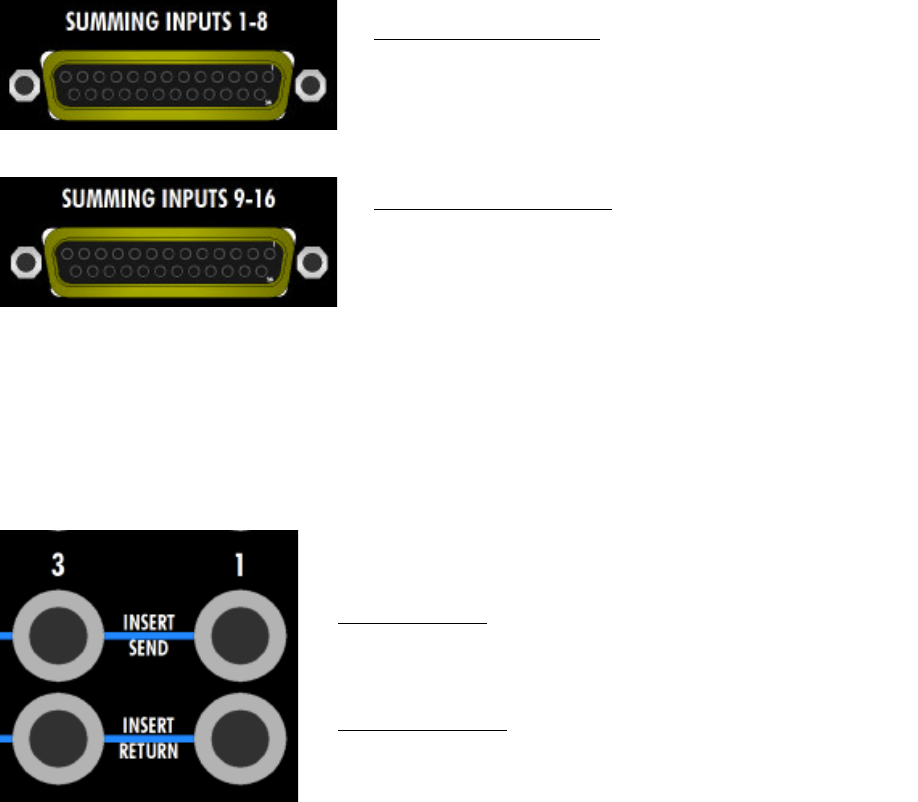

INSERT SEND: ¼” tip-ring-sleeve, balanced, low-

impedance, line-level

INSERT RETURN: ¼” tip-ring-sleeve, balanced, low-

impedance, line-level

SUMMING INPUTS 1-8: DB-25, balanced, low-

impedance, line-level

• Standard pin-out: 1-8=summing inputs 1-8

SUMMING INPUTS 9-16: DB-25, balanced, low-

impedance, line-level

• Standard pin-out: 1-8=summing inputs 9-16
