API “The BOX” Operator’s Manual

94

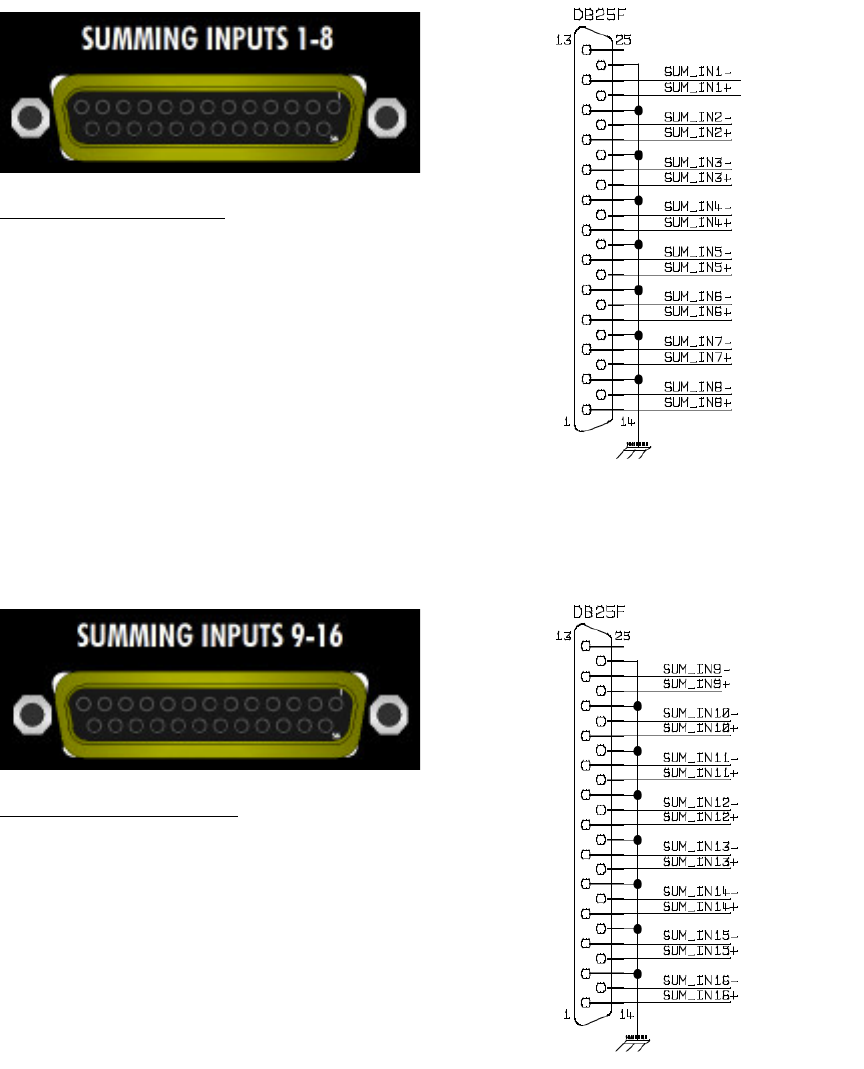

Summing Input Line Input Connections

SUMMING INPUTS 1-8: Standard = API

• 1 = Summing Line Input 1

• 2 = Summing Line Input 2

• 3 = Summing Line Input 3

• 4 = Summing Line Input 4

• 5 = Summing Line Input 5

• 6 = Summing Line Input 6

• 7 = Summing Line Input 7

• 8 = Summing Line Input 8

SUMMING INPUTS 9-16: Standard = API

• 1 = Summing Line Input 9

• 2 = Summing Line Input 10

• 3 = Summing Line Input 11

• 4 = Summing Line Input 12

• 5 = Summing Line Input 13

• 6 = Summing Line Input 14

• 7 = Summing Line Input 15

• 8 = Summing Line Input 16
